Product name : Reverse Camera Interface Adapter for Audi A1 Q3
Item : 8012
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 This camera interface adapter is designed for connecting rear view cameras to the OEM monitor
of Audi with 3G MMI/3GMMI Plus Also,you will be able to connect a bird view 360 degree system
The adapter come with active parking guidelines function.
Reverse Camera Interface Adapter for Audi A1 Q3 Q7 A6 A7 A8 with 3G MMI 3G MMI Plus ,also
fits for Touareg from 2012 to 2015Y.
Technical Specifications
  • Inputs:
    • CVBS for rear view camera
    • CVBS for 360 degree Bird view
    • LVDS
  • Outputs:
    • LCD output
  • Power:
    • Input power: 8 V DC ~ 24 V DC
    • Max. power consumption: 12 Watt
  • Input mode switching
    • DIP switches
With an OEM button via CAN

Compatibility
Brand Model Model years System Monitor size
From To
Audi A1 2012 2015 MMI 3G 6,5" / 7"
A6 2012 2015 MMI 3G / MMI 3G+ 7"
A7 2012 2015 MMI 3G+ 8"
A8 2012 2015 MMI 3G+ 8"
Q3 2012 2015 MMI 3G 6,5" / 7"
Q7 2012 2015 MMI 3G+ 7"

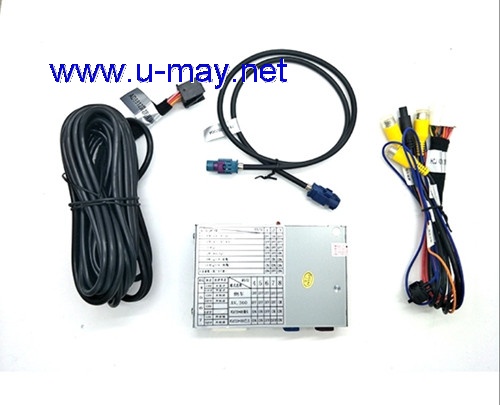

Package Content

  • Main Audi 3G MMI camera adapter module
  • Cable sets

  •
