Product name : Dual Antenna 2.4G+5G miracast DLNA+airplay mirroring Car Wifi Didplay Mirror Link Box
Item : 50p
 Enlarge Image                   Back



Details:
Car WI-FI Mirror link Box for IOS10/Android Phone Miracast/AirPlay/Allshare Cast/Screen Mirroring

1.Mobile phone and car wireless connection. Supports multi-system cross-platform (Android, iOS,Windows) and multi-screen interactive features;

2.Support full HD wireless audio and video transmission, support HDMI 1.3 HD output;

3.Support WiFi 802.11 b / g / n / ac wireless connectivity, strong anti-jamming capability;

4.Easy to use, Plug and playing, no need any software driver or APP,the strongest and the most stable than similar products.

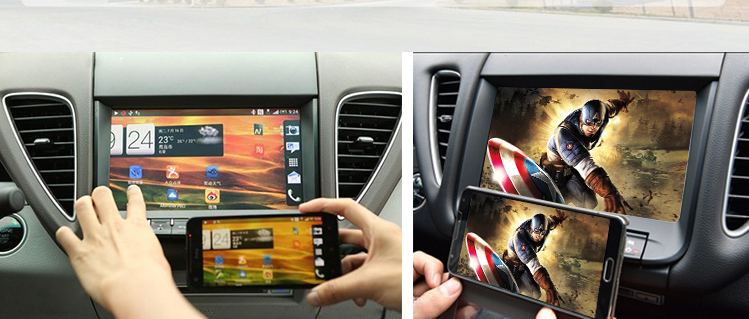

5.Achieve the phone's screen mapped to car display,enabling networked navigation,Car audio and video,and entertainment.

Flash

1G
Frequency MIPS 500MHz
Network WiFi 802.1 b/g/n
Power Supply DC 5V/1000mA and  12V/1000mA
SDRAM DDR3  2G
Transmission distance Up to 15M-20M
Data Transmission Rate Up to 300Mbps
Working Power 2.4W
HD 1080P
Operation Temperature -10℃—70℃

Interface:

HDMI :
1xHDMI A-Type, HDMI1.3
CVBS(AV) out-put:

1xCVBS
USB
1XMicro USB(For Power Supply & Link cable network adapter) for power supply

Media Parameter:

Video Resolution: Full HD1920×1080 1280×720



Video Decoder:

AVI, MP4, MOV, VOB, DAT, RMVB, WMV, FLV,DIVX, MKV…etc formats.
Audio Container:    Support MP3,WMA,AAC,WAV,OGG,REAL audio,ALAC…etc formats,Also support FLAC,APE HD Hi-Fi Audio formats.
USB Flash Disk: Supprt Format:AVI,MP4,MOV,VOB;DAT,RMVB,WMV,FLV,DIVX,MKV
Image Format: Support JPEG,BMP,GIF,PNG,TIFF,Support 8000×8000 Resolution of high-definition digital photos
Transmission Protocol: Support (DLNA,Airplay,Miracast wireless display)
