Product name : Reverse Camera Interface Adapter for Audi Q3 Q7 A6 A7 A8 with 3G MMI 3G MMI Plus
Item : 2001
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Reverse Camera Interface Adapter for Audi A4 A5 A6 A7 A8 Q3 Q5 Q7 3G MMI Plus
and Volkswagen Touareg with Active Parking Guidelines

This camera interface adapter is designed for connecting rear view cameras to the OEM monitor of Audi
with 3G MMI/3GMMI Plus and Volkswagen Touareg. Also t
he adapter module come with active parking
guidelines
function.

Technical Specifications
Inputs:




  • CVBS for rear view camera
  • CVBS for 360 degree Bird view
  • LVDS



  • Outputs:
    • LCD output
  • Power:
    • Input power: 8 V DC ~ 24 V DC
    • Max. power consumption: 12 Watt

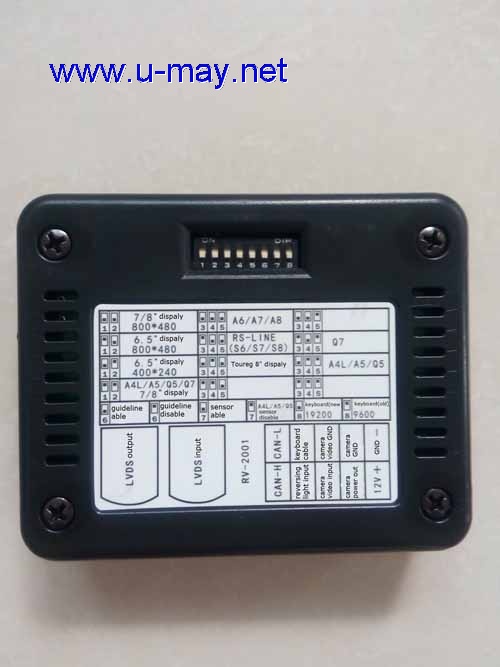

  • Input mode switching
    • DIP switches
    • With an OEM button via CAN
  • Package Content
  • Main Audi 3G MMI camera adapter module
  • Cable sets
  • Compatibility

    Brand Model Model years System Monitor size
    From To
    Audi A1 2012 2015 MMI 3G 6,5" / 7"
    A4/S4 2012 2015 MMI 3G 6,5" / 7"
    A5/S5 2012 2015 MMI 3G 6,5" / 7"
    A6 2012 2015 MMI 3G / MMI 3G+ 7"
    A7 2012 2015 MMI 3G+ 8"
    A8 2012 2015 MMI 3G+ 8"
    Q3 2012 2015 MMI 3G 6,5" / 7"
    Q5 2012 2015 MMI 3G 7"
    Q7 2012 2015 MMI 3G+ 7"
    Volkswagen Touareg 2012 2015 - -

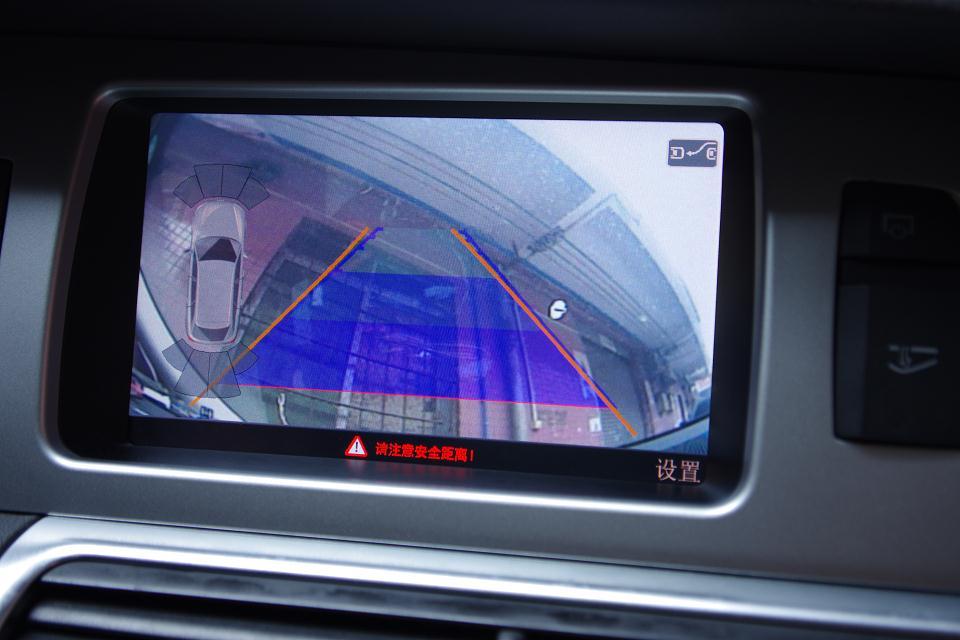

The adapter come with active parking guidelines function.
