Reversing aid camera interface Module with parking guidelines for
LandRover Jaguar Evoque

he video adapter module is designed for aftermarket camera connection to
LandRover Jaguar Evoque OEM car monitors . The device transforms composite
video signal into RGB video signal necessary for the reverse camera connection.
The reverse camera image is activated via the CAN bus.
Notes! The rearview Camera Adapter module is only compatible with the LandRover
Jaguar Evoque with Harman HOST from 2015 to the following year models.Not fits car with Harman
head unit with DVD system.

Technical Specifications

·         Inputs:

o    CVBS for rear view camera

o    CVBS for video Sources

·         Outputs:

o    Output for connection to the OEM monitor

·         Power:

o    Input voltage: 8-24 V DC

o    Max. consumption: 12 W

·         Model selection by DIP switches

·         Automatic display of rear view camera image when reversing

·         Switch modes using the OEM button

Reversing aid camera interface Module with parking guidelines for LandRover Jaguar Evoque
Features

·         Aftermarket camera connection

·         The connected camera image activation when reversing

·         OEM reversing adapter but with Original Style dynamic guideline

Compatibility

Model	Model years		Head unit
	From	To
LandRover Discovery	2015	–	With Harman HOST
LandRover Evoque	2015	–
Jaguar XE/ XF/F-Type /F-pace	2015	–

Reversing aid camera interface Adapter Module with parking guidelines for LandRover Jaguar Evoque
Package Content

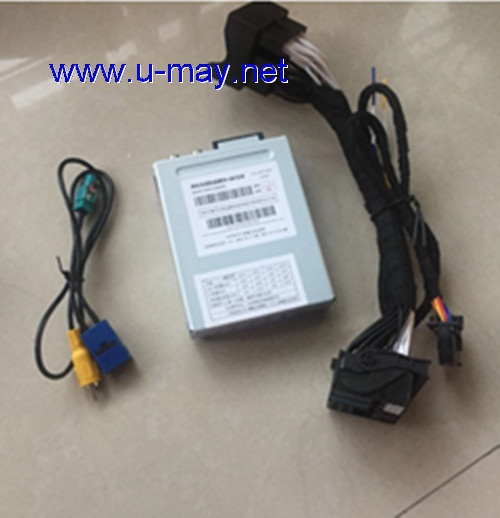

·         Adapter main module

·         Connection cables
